Asus Turbo GeForce RTX 3070 V2
Priser, Specifikationer og information
Grafikkort
Over 230+ GPU-modeller — Og vokser.

GPUs > NVIDIA RTX 3070 > Asus Turbo GeForce RTX 3070 V2

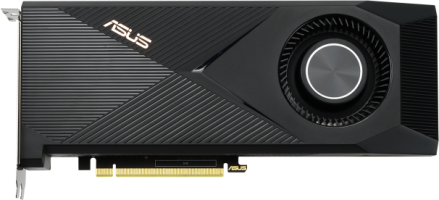

Asus Turbo GeForce RTX 3070 V2 - Front

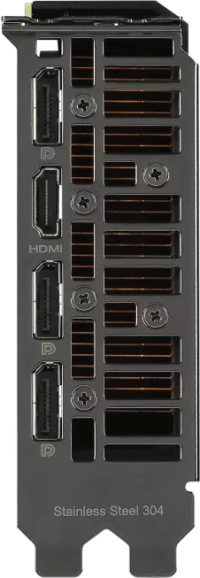

Asus Turbo GeForce RTX 3070 V2 - Front Asus Turbo GeForce RTX 3070 V2 - Side Asus Turbo GeForce RTX 3070 V2 - Side Asus Turbo GeForce RTX 3070 V2 - Outputs
Asus Turbo GeForce RTX 3070 V2
TURBO-RTX3070-8G-V2
ASUS Turbo GeForce RTX™ 3070 V2 8GB GDDR6 with LHR features a refreshed design for environments with restricted airflow. NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities. This GeForce RTX 3070 graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.). A redesigned shroud incorporates angles on all edges for optimized airflow. Dual ball fan bearings can last up to twice as long as sleeve bearing designs. Auto-Extreme Technology uses automation to enhance reliability.

Information
PlatformConsumer
ArkitekturAmpere
GenerationGeForce RTX 30
Forrige generationGeForce RTX 20
Næste generationGeForce RTX 40
GrænsefladePCIe 4.0 x16
Maks temperatur93 C
Kerne
NavnGA104
FabrikantSamsung
Procesnode8 nm
Transistorer17400 million
Chipstørrelse392.0 mm²
Densitet44.4 /mm²
GPU-kernekonfiguration
Kerner5888
TMU184
ROP96
SM'er46
Tensor-kerner184
RT-kerner46
Hukommelse
TeknologiGDDR6
Størrelse8 GB
Bus256 bit
Båndbredde448.0 GB/s
Hastighed14.0 Gbps
Klokkehastigheder
Basisklokke1500 MHz
Boost-klokke1755 MHz 1725 MHz
Hukommelsesklokke1750 MHz
Strøm
8-pin2
TDP220 w
Anbefalet strømforsyning650 w
Skærmudgang
DisplayPort3
HDMI1
Opløsning7680x4320
Skærme4
Dimensioner
Slot2
