Asus Dual GeForce RTX 3070 OC Edition
Priser, Specifikationer og information
Grafikkort
Over 230+ GPU-modeller — Og vokser.

GPUs > NVIDIA RTX 3070 > Asus Dual GeForce RTX 3070 OC Edition

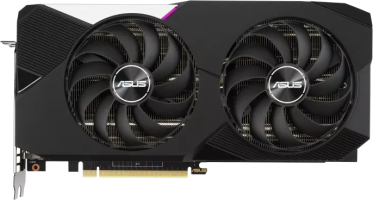

Asus Dual GeForce RTX 3070 OC Edition - Front

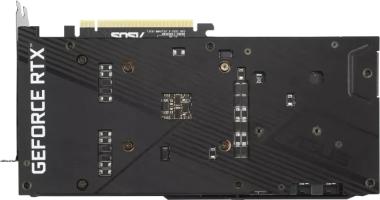

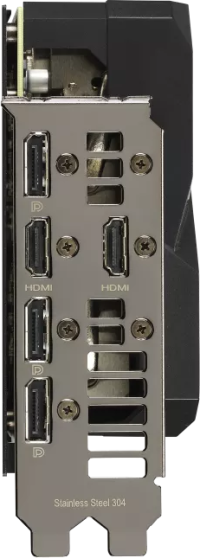

Asus Dual GeForce RTX 3070 OC Edition - Front Asus Dual GeForce RTX 3070 OC Edition - Rear Asus Dual GeForce RTX 3070 OC Edition - Side Asus Dual GeForce RTX 3070 OC Edition - Outputs
Asus Dual GeForce RTX 3070 OC Edition
DUAL-RTX3070-O8G
The ASUS GeForce RTX™️ 3070 OC Edition 8GB GDDR6 with two powerful Axial-tech fans for AAA gaming performance and ray tracing. NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities. Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. Auto-Extreme Technology uses automation to enhance reliability. A protective backplate secures components during transportation and installation. GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Information
PlatformConsumer
ArkitekturAmpere
GenerationGeForce RTX 30
Forrige generationGeForce RTX 20
Næste generationGeForce RTX 40
GrænsefladePCIe 4.0 x16
Maks temperatur93 C
Kerne
NavnGA104
FabrikantSamsung
Procesnode8 nm
Transistorer17400 million
Chipstørrelse392.0 mm²
Densitet44.4 /mm²
GPU-kernekonfiguration
Kerner5888
TMU184
ROP96
SM'er46
Tensor-kerner184
RT-kerner46
Hukommelse
TeknologiGDDR6
Størrelse8 GB
Bus256 bit
Båndbredde448.0 GB/s
Hastighed14.0 Gbps
Klokkehastigheder
Basisklokke MHz 1500 MHz
Boost-klokke1770 MHz 1725 MHz
Hukommelsesklokke1750 MHz
Strøm
8-pin2
TDP240 w 220 w
Anbefalet strømforsyning650 w
Skærmudgang
DisplayPort3
HDMI2
Opløsning7680x4320
Skærme4
Dimensioner
Slot2.5 2

BIOS-filer
94.04.3A.40.21
Quiet
Størrelse: 976 KB
Build: 2020-10-30
94.04.3A.40.20
Performance
Størrelse: 976 KB
Build: 2020-10-30
