| Information | |
|---|---|
| Platform | Consumer |
| Arkitektur | Blackwell 2nd-gen |
| Generation | GeForce RTX 50 |
| Forrige generation | GeForce RTX 40 |
| Grænseflade | PCIe 5.0 x16 |
| Maks temperatur | 88 C |
| Kerne | |
|---|---|
| Navn | GB203 |
| Fabrikant | TSMC |
| Procesnode | 5 nm |
| Transistorer | 45600 million |
| Chipstørrelse | 378.0 mm² |
| Densitet | 120.6 /mm² |
| GPU-kernekonfiguration | |
|---|---|
| Kerner | 10752 |
| TMU | 336 |
| ROP | 112 |
| SM'er | 84 |
| RT-kerner | 84 |
| Hukommelse | |
|---|---|
| Teknologi | GDDR7 |
| Størrelse | 16 GB |
| Bus | 256 bit |
| Båndbredde | 960.0 GB/s |
| Hastighed | 30.0 Gbps |
| Klokkehastigheder | |
|---|---|
| Basisklokke | 2300 MHz |
| Boost-klokke | 2617 MHz |
| Hukommelsesklokke | 1875 MHz |
| Strøm | |
|---|---|
| 16-pin | 1 |
| TDP | 360 w |
| Anbefalet strømforsyning | 850 w |

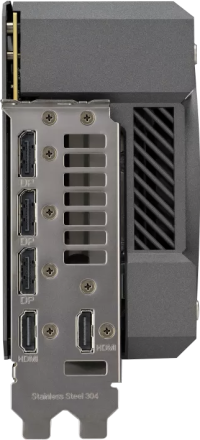

| Skærmudgang | |
|---|---|
| DisplayPort | 3 2.1b |
| HDMI | 2 2.1b |
| HDCP | 2.3 |
| Dimensioner | |
|---|---|
| Slot | 3.6 2 |
| Længde | 348 mm 304 mm |
| Højde | 146 mm 137 mm |
| Bredde | 72 mm 40 mm |
| Grafikkort▲ | Pris▲ | Boost-klokke▲ | Slot▲ | Længde▲ | Højde▲ | Bredde▲ |
|---|---|---|---|---|---|---|
| 2760 MHz +5.5% | 3.8 | 357.6 mm | 149.3 mm | 76 mm | ||
| 2760 MHz +5.5% | 3.8 | 357.6 mm | 149.3 mm | 76 mm | ||
| 2760 MHz +5.5% | 3.8 | 357.6 mm | 149.3 mm | 76 mm | ||
| 15 590 kr. Komplett.dk | 2760 MHz +5.5% | 3.8 | 357.6 mm | 149.3 mm | 76 mm | |
| 17 190 kr. Komplett.dk | 2640 MHz +0.9% | 3.8 | 357.6 mm | 149.3 mm | 76 mm | |
| 14 790 kr. Komplett.dk | 2640 MHz +0.9% | 3.8 | 357.6 mm | 149.3 mm | 76 mm | |
| 12 790 kr. Komplett.dk | 2760 MHz +5.5% | 3.8 | 357.6 mm | 149.3 mm | 76 mm | |
| 2730 MHz +4.3% | 3.5 | 332.1 mm | 137.5 mm | 69.6 mm | ||
| 2670 MHz +2.0% | 3.5 | 332.1 mm | 137.5 mm | 69.6 mm | ||
| 2640 MHz +0.9% | 3.5 | 329.7 mm | 137.8 mm | 67.8 mm | ||
| 2640 MHz +0.9% | 3.5 | 329.7 mm | 137.8 mm | 67.8 mm | ||
| 2617 MHz | 3.5 | 329.7 mm | 137.8 mm | 67.8 mm | ||
| 2640 MHz +0.9% | 2.8 | 303.5 mm | 115.8 mm | 55.7 mm | ||
| 2617 MHz | 2.8 | 303.5 mm | 115.8 mm | 55.7 mm | ||
| 2805 MHz +7.2% | 2 | 220 mm | 130 mm | 40 mm | ||
| 12 990 kr. Komplett.dk | 2805 MHz +7.2% | 2 | 208 mm | 156 mm | 29 mm | |
| 11 990 kr. Elgiganten.dk | 2805 MHz +7.2% | 3.8 | 360 mm | 150 mm | 75 mm | |
| 11 499 kr. Elgiganten.dk | 2805 MHz +7.2% | 3.8 | 360 mm | 150 mm | 75 mm | |
| 10 990 kr. Elgiganten.dk | 2730 MHz +4.3% | 3.5 | 340 mm | 140 mm | 70 mm | |
| 2617 MHz | 3.5 | 340 mm | 140 mm | 70 mm | ||
| 10 990 kr. Elgiganten.dk | 2730 MHz +4.3% | 2.5 | 304 mm | 126 mm | 50 mm | |
| 10 499 kr. Elgiganten.dk | 2670 MHz +2.0% | 2.5 | 304 mm | 126 mm | 50 mm | |
| 2617 MHz | 2.5 | 304 mm | 126 mm | 50 mm | ||
| 2617 MHz | 2.5 | 304 mm | 126 mm | 50 mm | ||
| 2700 MHz +3.2% | 4 | 385 mm | 151 mm | 80 mm | ||
| 12 890 kr. Elgiganten.dk | 2700 MHz +3.2% | 2.5 | 304 mm | 126 mm | 50 mm | |
| 2617 MHz | 3.6 | 348 mm | 146 mm | 72 mm | ||
| 11 990 kr. Elgiganten.dk | 2700 MHz +3.2% | 3.6 | 348 mm | 146 mm | 72 mm | |
| 13 490 kr. Komplett.dk | 2617 MHz | 2.5 | 304 mm | 126 mm | 50 mm | |
| 9 890 kr. Komplett.dk | 2655 MHz +1.5% | 2.5 | 304 mm | 126 mm | 50 mm | |
| 2730 MHz +4.3% | 3.7 | 361 mm | 138 mm | 73 mm | ||
| 2617 MHz | 3 | 319 mm | 150 mm | 60 mm | ||
| 2715 MHz +3.7% | 3 | 319 mm | 150 mm | 60 mm | ||
| 2617 MHz | 2.5 | 288 mm | 112 mm | 50 mm | ||
| 2640 MHz +0.9% | 2.5 | 288 mm | 112 mm | 50 mm | ||
| 2617 MHz | 2.5 | 303 mm | 121 mm | 49 mm | ||
| 2640 MHz +0.9% | 2.5 | 303 mm | 121 mm | 49 mm | ||
| 2617 MHz | 2.5 | 338 mm | 140 mm | 50 mm | ||
| 10 690 kr. Elgiganten.dk | 2700 MHz +3.2% | 2.5 | 338 mm | 140 mm | 50 mm | |
| 2617 MHz | 2.5 | 303 mm | 121 mm | 49 mm | ||
| 2640 MHz +0.9% | 2.5 | 303 mm | 121 mm | 49 mm | ||
| 2617 MHz | 2.5 | 338 mm | 140 mm | 50 mm | ||
| 2700 MHz +3.2% | 2.5 | 338 mm | 140 mm | 50 mm | ||
| 2700 MHz +3.2% | 3.3 | 357 mm | 151 mm | 66 mm | ||
| 2730 MHz +4.3% | 3.3 | 357 mm | 151 mm | 66 mm | ||
| 2730 MHz +4.3% | 3.3 | 357 mm | 151 mm | 66 mm | ||
| 2700 MHz +3.2% | 3.8 | 359 mm | 150 mm | 76 mm | ||
| 2745 MHz +4.9% | 3.8 | 359 mm | 15 mm | 76 mm | ||
| 2700 MHz +3.2% | 2.6 | 280 mm | 148 mm | 51 mm | ||
| 2745 MHz +4.9% | 2.6 | 280 mm | 148 mm | 51 mm | ||
| 2617 MHz | 2.5 | 303 mm | 121 mm | 49 mm | ||
| 10 690 kr. Elgiganten.dk | 2640 MHz +0.9% | 2.5 | 303 mm | 121 mm | 49 mm | |
| 2617 MHz | 3 | 331.9 mm | 127.1 mm | 60 mm | ||
| 2700 MHz +3.2% | 3 | 331.9 mm | 127.1 mm | 60 mm | ||
| 2617 MHz | 3 | 331.9 mm | 127.1 mm | 60 mm | ||
| 10 343 kr. Elgiganten.dk | 2700 MHz +3.2% | 3 | 331.9 mm | 127.1 mm | 60 mm | |
| 2617 MHz | 3.6 | 331.9 mm | 150 mm | 70.4 mm | ||
| 2730 MHz +4.3% | 3.6 | 331.9 mm | 150 mm | 70.4 mm | ||
| 2620 MHz +0.1% | 3 | 328.7 mm | 137.7 mm | 59.7 mm | ||
| 10 190 kr. Komplett.dk | 2730 MHz +4.3% | 3 | 328.7 mm | 137.7 mm | 59.7 mm | |
| 2620 MHz +0.1% | 3 | 328.7 mm | 137.7 mm | 59.7 mm | ||
| 9 990 kr. Komplett.dk | 2780 MHz +6.2% | 3 | 328.7 mm | 137.7 mm | 59.7 mm | |
| 2730 MHz +4.3% | 2 | 300 mm | 150 mm | 40 mm | ||
| 2617 MHz | 2 | 300 mm | 150 mm | 40 mm | ||
| 2617 MHz | 3 | 331.9 mm | 133.1 mm | 60 mm | ||
| 2700 MHz +3.2% | 3 | 331.9 mm | 133.1 mm | 60 mm | ||
| 10 590 kr. Komplett.dk | 2617 MHz | 3 | 331.9 mm | 133.1 mm | 60 mm | |
| 10 790 kr. Komplett.dk | 2700 MHz +3.2% | 3 | 331.9 mm | 133.1 mm | 60 mm | |
| 2617 MHz | 3.5 | 331.9 mm | 145.6 mm | 69.9 mm | ||
| 2730 MHz +4.3% | 3.5 | 331.9 mm | 145.6 mm | 69.9 mm | ||
| 9 999 kr. Elgiganten.dk | 2640 MHz +0.9% | 2.5 | 303 mm | 121 mm | 49 mm | |
| 2617 MHz | 2 | 304 mm | 137 mm | 40 mm | ||
| 10 190 kr. Komplett.dk | 2640 MHz +0.9% | 2.5 | 300 mm | 120 mm | 50 mm | |
| 2617 MHz | 2.1 | 300 mm | 116 mm | 41 mm | ||
| 2700 MHz +3.2% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2715 MHz +3.7% | 3.7 | 334 mm | 148 mm | 73 mm |
