| Information | |
|---|---|
| Platform | Consumer |
| Arkitektur | Blackwell 2nd-gen |
| Generation | GeForce RTX 50 |
| Forrige generation | GeForce RTX 40 |
| Navn | GB206 |
| Grænseflade | PCIe 5.0 x8 |
| Kerne | |
|---|---|
| Navn | GB206 |
| Fabrikant | TSMC |
| Procesnode | 5 nm |
| Transistorer | 21900 million |
| Chipstørrelse | 181.0 mm² |
| Densitet | 121.0 /mm² |
| GPU-kernekonfiguration | |
|---|---|
| Kerner | 3840 |
| TMU | 120 |
| ROP | 48 |
| SM'er | 30 |
| RT-kerner | 30 |
| Hukommelse | |
|---|---|
| Teknologi | GDDR7 |
| Størrelse | 8 GB |
| Bus | 128 bit |
| Båndbredde | 448.0 GB/s |
| Hastighed | 28.0 Gbps |
| Klokkehastigheder | |
|---|---|
| Basisklokke | 2280 MHz |
| Boost-klokke | 2580 MHz 2497 MHz |
| Hukommelsesklokke | 1750 MHz |
| Strøm | |
|---|---|
| 8-pin | 1 |
| TDP | 155 w 145 w |
| Anbefalet strømforsyning | 550 w |

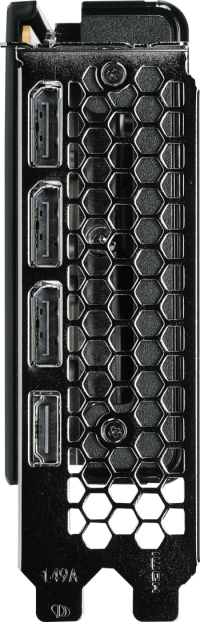

| Skærmudgang | |
|---|---|
| DisplayPort | 3 2.1b |
| HDMI | 1 2.1b |
| HDCP | 2.3 |
| Dimensioner | |
|---|---|
| Slot | 2.1 |
| Længde | 291.9 mm |
| Højde | 116.6 mm |
| Bredde | 41.3 mm |
| Grafikkort▲ | Pris▲ | Boost-klokke▲ | Slot▲ | Længde▲ | Højde▲ | Bredde▲ |
|---|---|---|---|---|---|---|
| 2550 MHz +2.1% | 2.1 | 220.5 mm | 120.25 mm | 41.6 mm | ||
| 2527 MHz +1.2% | 2.1 | 220.5 mm | 120.25 mm | 41.6 mm | ||
| 2527 MHz +1.2% | 2.1 | 220.5 mm | 120.25 mm | 41.6 mm | ||
| 2497 MHz | 2.1 | 220.5 mm | 120.25 mm | 41.6 mm | ||
| 2497 MHz | 2 | 182.5 mm | 69 mm | 38.2 mm | ||
| 2497 MHz | 2 | 164.5 mm | 111.2 mm | 36.4 mm | ||
| 2 888 kr. Komplett.dk | 2722 MHz +9.0% | 2 | 329 mm | 128 mm | 40 mm | |
| 2595 MHz +3.9% | 2 | 281 mm | 119 mm | 40 mm | ||
| 2497 MHz | 2 | 281 mm | 119 mm | 40 mm | ||
| 2550 MHz +2.1% | 2 | 208 mm | 120 mm | 40 mm | ||
| 2550 MHz +2.1% | 2 | 281 mm | 115 mm | 40 mm | ||
| 2 874 kr. Komplett.dk | 2550 MHz +2.1% | 2 | 208 mm | 120 mm | 40 mm | |
| 3 249 kr. Komplett.dk | 2595 MHz +3.9% | 2 | 281 mm | 117 mm | 40 mm | |
| 2 299 kr. Komplett.dk | 2512 MHz +0.6% | 2 | 199 mm | 116 mm | 40 mm | |
| 2497 MHz | 2 | 199 mm | 116 mm | 40 mm | ||
| 2 447 kr. Komplett.dk | 2512 MHz +0.6% | 2 | 199 mm | 116 mm | 40 mm | |
| 2497 MHz | 2 | 199 mm | 116 mm | 40 mm | ||
| 2512 MHz +0.6% | 2 | 182 mm | 69 mm | 36 mm | ||
| 2497 MHz | 2 | 182 mm | 69 mm | 36 mm | ||
| 2497 MHz | 2.5 | 228 mm | 123 mm | 50 mm | ||
| 2535 MHz +1.5% | 2.1 | 225 mm | 120 mm | 42 mm | ||
| 2497 MHz | 2.1 | 225 mm | 120 mm | 42 mm | ||
| 2535 MHz +1.5% | 2.5 | 228 mm | 123 mm | 50 mm | ||
| 2497 MHz | 2 | 175.8 mm | 69 mm | 38 mm | ||
| 2550 MHz +2.1% | 2 | 175.8 mm | 69 mm | 38 mm | ||
| 2497 MHz | 2.5 | 228 mm | 123 mm | 50 mm | ||
| 2497 MHz | 2.5 | 268.3 mm | 120 mm | 50 mm | ||
| 2 990 kr. Elgiganten.dk | 2565 MHz +2.7% | 2.5 | 268.3 mm | 120 mm | 50 mm | |
| 2 549 kr. Elgiganten.dk | 2535 MHz +1.5% | 2.5 | 228 mm | 123 mm | 50 mm | |
| 2497 MHz | 3.1 | 302 mm | 133.5 mm | 62 mm | ||
| 2640 MHz +5.7% | 3.1 | 302 mm | 133.5 mm | 62 mm | ||
| 2497 MHz | 2.1 | 161 mm | 125 mm | 42 mm | ||
| 2527 MHz +1.2% | 2.1 | 161 mm | 125 mm | 42 mm | ||
| 2497 MHz | 2.3 | 145 mm | 120 mm | 45 mm | ||
| 2527 MHz +1.2% | 2.3 | 145 mm | 12 mm | 45 mm | ||
| 2497 MHz | 2.1 | 248 mm | 135 mm | 41 mm | ||
| 2625 MHz +5.1% | 2.1 | 248 mm | 135 mm | 4.1 mm | ||
| 2497 MHz | 2.1 | 197 mm | 120 mm | 41 mm | ||
| 2 590 kr. Elgiganten.dk | 2527 MHz +1.2% | 2.1 | 197 mm | 120 mm | 41 mm | |
| 2497 MHz | 2 | 197 mm | 120 mm | 40 mm | ||
| 2527 MHz +1.2% | 2 | 197 mm | 120 mm | 40 mm | ||
| 2497 MHz | 2.2 | 300 mm | 125 mm | 44 mm | ||
| 2625 MHz +5.1% | 2.2 | 300 mm | 125 mm | 44 mm | ||
| 2497 MHz | 2.2 | 300 mm | 125 mm | 44 mm | ||
| 2625 MHz +5.1% | 2.2 | 300 mm | 125 mm | 44 mm | ||
| 2497 MHz | 2.1 | 303 mm | 121 mm | 41 mm | ||
| 2535 MHz +1.5% | 2.1 | 303 mm | 121 mm | 41 mm | ||
| 2497 MHz | 2.1 | 204 mm | 117 mm | 41 mm | ||
| 2535 MHz +1.5% | 2.1 | 204 mm | 117 mm | 41 mm | ||
| 2497 MHz | 2.1 | 197 mm | 120 mm | 41 mm | ||
| 2 990 kr. Elgiganten.dk | 2527 MHz +1.2% | 2.1 | 197 mm | 120 mm | 41 mm | |
| 2527 MHz +1.2% | 2 | 262.1 mm | 126.3 mm | 40.1 mm | ||
| 2497 MHz | 2 | 262.1 mm | 126.3 mm | 40.1 mm | ||
| 2535 MHz +1.5% | 2 | 262.1 mm | 126.3 mm | 40.1 mm | ||
| 2512 MHz +0.6% | 2 | 262.1 mm | 126.3 mm | 40.1 mm | ||
| 2497 MHz | 2.1 | 291.9 mm | 116.6 mm | 41.3 mm | ||
| 2580 MHz +3.3% | 2.1 | 291.9 mm | 116.6 mm | 41.3 mm | ||
| 3 124 kr. Komplett.dk | 2580 MHz +3.3% | 2 | 280 mm | 120 mm | 40 mm | |
| 2497 MHz | 2 | 200 mm | 120 mm | 40 mm | ||
| 2535 MHz +1.5% | 2 | 280 mm | 120 mm | 40 mm | ||
| 2497 MHz | 146.7 | 125 mm | 40 mm | 2 mm | ||
| 2 863 kr. Komplett.dk | 2497 MHz | 2 | 262.1 mm | 126.3 mm | 40.1 mm | |
| 2 899 kr. Komplett.dk | 2535 MHz +1.5% | 2 | 262.1 mm | 126.3 mm | 40.1 mm | |
| 2497 MHz | 2.1 | 291.9 mm | 116.5 mm | 41.3 mm | ||
| 2580 MHz +3.3% | 2.1 | 291.9 mm | 116.5 mm | 41.3 mm | ||
| 2 899 kr. Komplett.dk | 2527 MHz +1.2% | 2.1 | 225 mm | 116 mm | 41 mm | |
| 2497 MHz | 2.1 | 178 mm | 69 mm | 41 mm | ||
| 2497 MHz | 2.1 | 225 mm | 116 mm | 41 mm |
